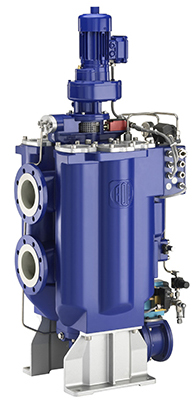

BOLLFILTER Automatic Type 6.64 Automatic Self-Cleaning filter for large engines
The high performance filter automatic Type 6.64 is used primarily for the filtration of large quantities of liquid fuel, - lubricants, coolants and alkaline cleaners. The back flush function and the filter flush function proceed from each other and without interrupting the process. The regeneration will be supported by a compressed air system. The system pressure remains constant.
For mer informasjon:
Flange Connection
- DIN Only
- DN 100 - DN 400 (Approx. 4" - 16")
Filter element
- wire-mesh and star pleated candles (made of stainless steel with smooth surface)
Grade of filtration
- 6 µm - 50 µm
Pressure stage
- PN 10/16 (DN 400 only PN10)
Filter housing
- nodular cast iron (optional nickel plated)
Operating temperature
- max. 160º C
Optional equipment
- by-pass filter with switch-over, flushing liquid treatment unit
