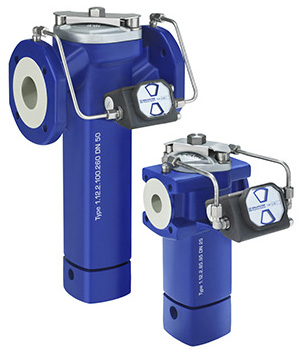

BOLLFILTER Simplex Type 1.12.2
The simplex filter Type 1.12.2 is a particle filter for water and oil. For filtration of liquids, it is installed in the suction or pressure lines and, thus, protects the following parts of the system, for example, pumps, bearings, heat exchangers, valves or pipelines against contamination and silting.
For mer informasjon:
Flange Connection
- ASME or DIN
- 1" - 3" or DN 25 - DN 80
Connections inline
- yes
Filter element
- star-pleated element, basket element, filter cartridge
Grade of filtration
- 10 µm - 5 mm
Pressure stage
- PN 32/40
Filter housing
- nodular cast iron
- cast stainless steel (DN 25, DN 50, DN 65 and DN 80)
- cast design (seamless weld)
Optional equipment
- differential pressure indicator optical or electrical
- heating
- cover safety device
General Accessories and Special Equipment
- Connecting elements
Flexible connection possibilities
e.g., flanged, NPT, ball valves, needle valves
- Instruments
Differential pressure connections such as optical and optical/electrical differential pressure measurement systems
- Optional equipment
Cover safety device
