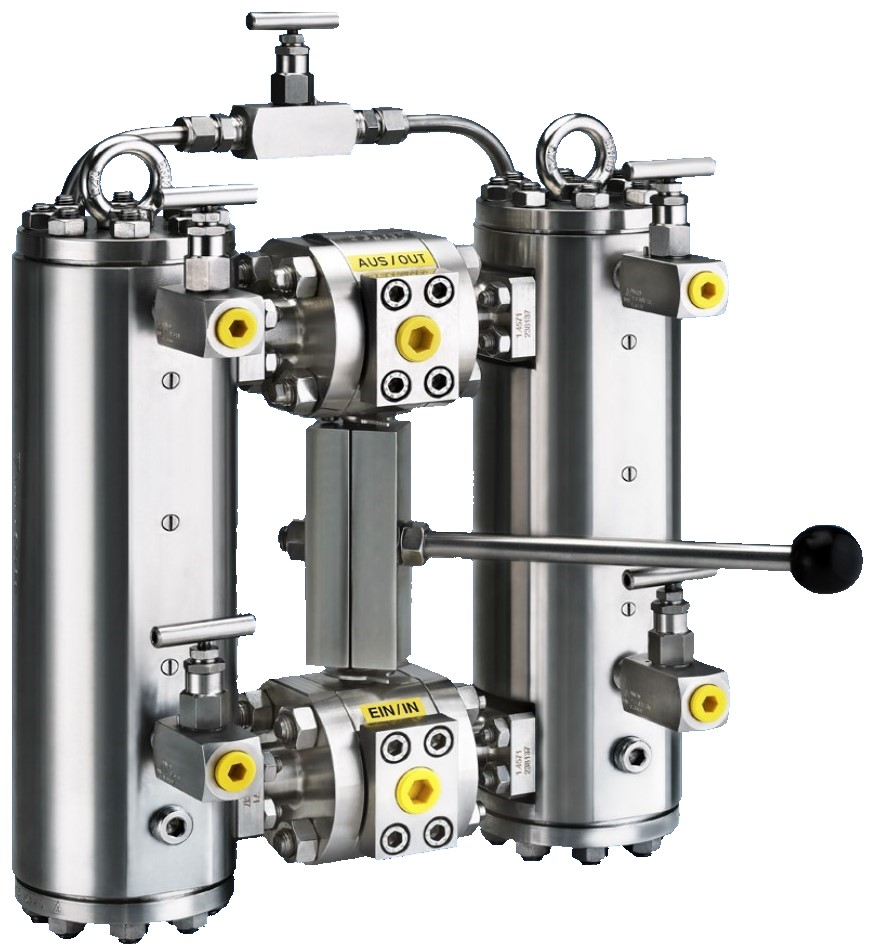

BOLLFILTER Duplex Type BFD-C HD


The high-performance duplex filter BOLLFILTER Duplex Type BFD-C HD is used as a gas filter and coalescence separator in chemical and petrochemical plants, in the offshore industry, and in the power plant sector. This filter is primarily used for filtering fuel gas and seal gas. In cases of heavy contamination, the filter is combined with a pre-separator, e.g. a cyclone or cyclone demister, to separate off solids and liquids. A rapidly rotating flow of gas is required in order to separate out small and lightweight particles. Therefore, the cyclone is designed under actual operating conditions in order to achieve the most efficient separation possible.



For mer informasjon:

Flange Connection

  • ASME or DIN
  • ¾” – 8” or DN 20 – DN 200

Filter element

  • Fiberglass/stainless steel disposable cartridges (as normal temperature and high/low temperature design); Option available for preliminary separation using demister, cyclone, or cyclone demister all within the same housing.

Grade of filtration

  • 0,1 - 250 µm

Operating pressure

  • > 500 bar (size and temperature dependent)

Filter housing

  • carbon steel (St 45-8 / A106B)
  • stainless steel (1.4404 / 316L)
  • non-welded

General Accessories and Special Equipment

  1. Connecting elements
    Flexible connection possibilities
    e.g., flanged, NPT, weld-on ends, ball valves, needle valves

  2. Instruments
    Differential pressure connections such as optical and optical/electrical differential pressure measurement systems

  3. Materials
    Filters available on request in Duplex or Super Duplex

  4. Optional equipment
    Cover lifting/pivoting mechanism
    Cover safety device

Special accessories for gas filtering

  • Pre-separator for liquid reduction / cyclone and cyclone demister
  • In addition to standard, filters also available in Duplex and Superuplex (on request)
    • Liquid level switches
    • Magnetic level indicator
    • Bulls Eyes
    • Adaptable fluid reservoir for saving the separated fluid
