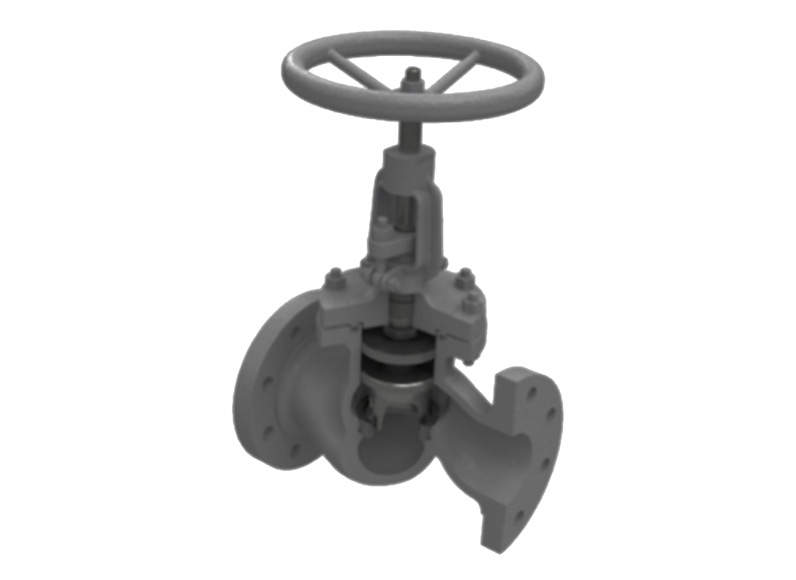

GLOBE BOLTED BONNET VALVE
Sizes
½” – 36”
Pressure Classes
ANSI 150 – 4500
API 2000 – 15000
Main features and options
Production Type: Bolted Bonnet, Outside Screwed & Yoke, Straight Pattern, Y Pattern, Angle
Disc Type: Plug Disc type for 1/2” to 36” size valves in all classes, Parabolic Disc type for 1/2” to 36” size
Design Range: Heavy wall Thickness Type (ISO 14313, BS1873, API 6A), Light wall Thickness Type (ASME B16.34, API603)
Applicable Materials: Carbon Steel, Alloy Steel, Stainless Steel, Special SS, Special Alloy
GLOBE PRESSURE SEAL VALVE
Sizes
½” – 36”
Pressure Classes
ANSI 300 – 4500
Main features and options
Production Type: Pressure Seal Bonnet, Outside Screwed & Yoke
Disc Type: Plug Disc type for 1/2” to 36” size valves in all classes
Design Range: Heavy wall Thickness Type (BS1873, ASME B16.34), Light wall Thickness Type (ASME B16.34, API603)
Material selection: WCB/LCB C5/WC1/WC6/WC9/C12/C12A/CF8/CF8M/CF8C
